Siemens FXD63B200
Categories: , Brand:

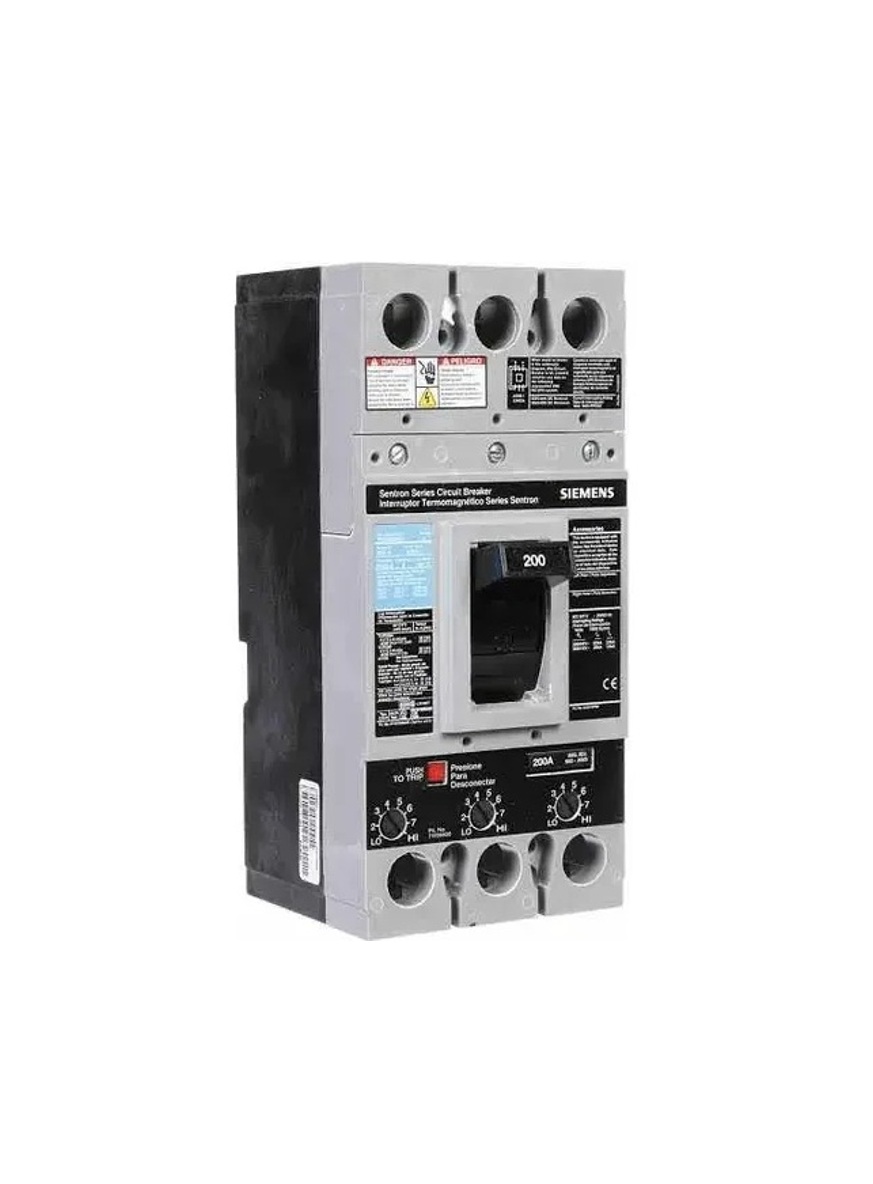

Siemens FXD63B200

The Siemens FXD63B200 is a 200-amp, 3-pole industrial molded case circuit breaker (MCCB) from the Sentron FD Frame series. It features a thermal-magnetic trip unit, standard line/load lugs, and an interrupting capacity of 35 kA at 480 VAC (65 kA at 240 VAC / 22 kA at 600 VAC).

$690.00

4 in stock

Description

The Siemens FXD63B200 is a heavy-duty, 3-pole molded case circuit breaker (MCCB) from the Siemens Sentron FD Frame family, commonly used in industrial electrical distribution, control panels, motor branch circuits, and service entry equipment.

Key Specifications

  • Manufacturer / Line: Siemens Sentron Series

  • Part Number: FXD63B200

  • Frame Type: FD Frame (Type FXD6)

  • Amperage Rating: 200 Amps

  • Poles / Phase: 3 Pole, 3-Phase

  • Voltage Ratings:

    • Up to 600 VAC

    • Up to 250 VDC / 500 VDC

  • Trip Unit: Thermal-Magnetic (Non-interchangeable, 40°C calibrated)

    • Instantaneous magnetic trip range: ~1000 A to 2000 A

Interrupting Capacity (AIC Ratings)

  • 240 VAC: 65 kA

  • 480 VAC: 35 kA

  • 600 VAC: 22 kA

Features & Mounting

  • Connection: Line-side and Load-side mechanical terminal lugs.

  • Standards: UL 489 listed, HACR rated.

  • Dimensions: Approx. 11.2 in (H) × 5.5 in (W) × 6.9 in (D).
