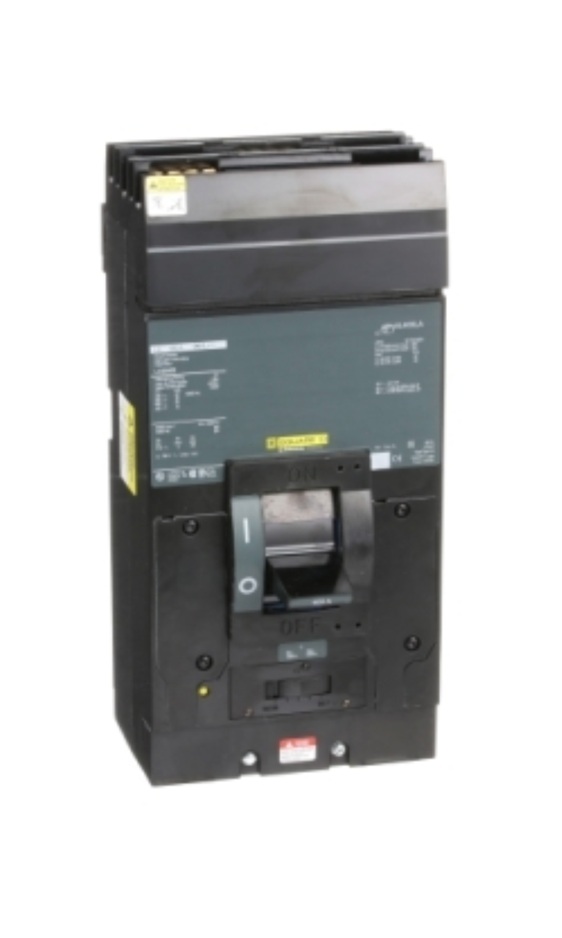

Square D LA36350
The Square D LA36350 is a heavy-duty 3-pole, 350 Amp industrial molded case circuit breaker manufactured by Schneider Electric. Engineered specifically for Square D I-Line panelboards and switchboards, it features a heavy-duty plug-on frame for quick, secure integration directly onto the electrical bus structure. Operating up to 600 VAC, this L-Frame breaker uses a reliable thermal-magnetic trip mechanism to provide high-capacity overload and short-circuit protection for massive commercial and industrial power loads.
$1,850.00
Description
Square D LA36350 Molded Case Circuit Breaker
The Square D LA36350 is a high-capacity 3-pole, 350 Amp industrial circuit breaker developed by Schneider Electric. Purpose-built for high-demand Square D I-Line panelboards and switchboards, it features an exclusive plug-on design for rapid and secure electrical bus connections. Equipped with a thermal-magnetic trip unit, this L-Frame breaker provides critical, heavy-duty overload and short-circuit protection for massive power distribution and HACR-rated systems operating up to 600 VAC.
Product Specifications
-
Manufacturer: Square D / Schneider Electric
-
Part Number / MPN: LA36350
-
Amperage Rating: 350A
-
Number of Poles: 3-Pole
-
Voltage Rating: 600 VAC / 250 VDC
-
Frame Type: L-Frame (Type LA)
-
Protection Technology: Thermal-Magnetic (LI - Long-Time & Instantaneous)
-
Interrupting Ratings (AIC): 42 kA @ 240V AC | 30 kA @ 480V AC | 22 kA @ 600V AC | 10 kA @ 250V DC
-
Mounting Style: Plug-On / I-Line Connection
-
Electrical Connection: I-Line Connection (Line Side) / Mechanical Lugs (Load Side)
-
Terminal Identifier: AL400LA
-
Magnetic Settings: 2000A Hold Current | 4000A Tripping Current
-
Wire Size Capacity: (1) #1 AWG to 600 kcmil OR (2) #1 AWG to 250 kcmil (Al/Cu)
-
Dimensions (H x W x D): 11.0" H x 6.0" W x 5.84" D
-
Certifications: UL Listed, CSA Certified, CE Marked, HACR Rated
