Square D MA36600
Category:

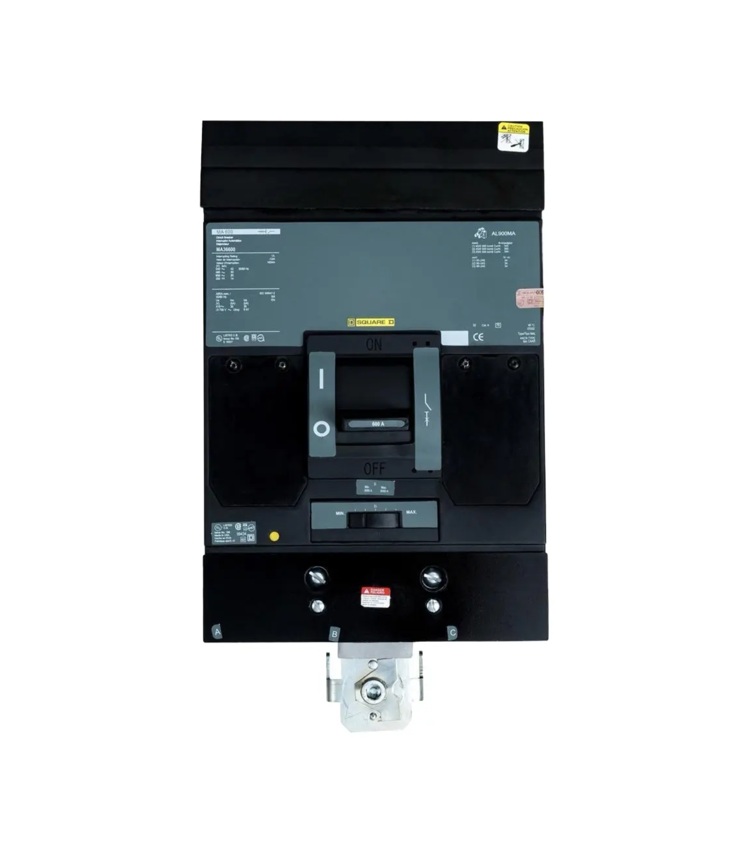

Square D MA36600

The Square D MA36600 is a high-capacity, 600A M-Frame circuit breaker designed for industrial power distribution. Featuring a 3-pole configuration and 600V rating, this I-Line plug-on breaker provides reliable thermal-magnetic protection with an interrupting capacity of 30kA at 480V.

$2,790.00

Description

Key Specifications:

  • The Square D MA36600 is a 600-Ampere, 3-pole molded case circuit breaker typically used for heavy-duty industrial power distribution and panelboard applications.

    Core Electrical Specifications

    • Amperage: 600 A

    • Voltage Rating: 600 VAC / 250 VDC

    • Number of Poles: 3-Pole

    • Phase Connection: 3-Phase (ABC)

    • Frame Type: M-Frame

    • Trip Unit Type: Thermal-Magnetic (Non-interchangeable)

    • Trip Functions: LI (Long-Time and Instantaneous)

    Physical & Installation Details

    • Mounting: I-Line Plug-On (designed for Class 612/661 panelboards and switchboards).

    • Magnetic Trip Adjustment: Adjustable

    • Wire Size Compatibility: Accommodates (3) 3/0 AWG to 500 kcmil Aluminum or Copper wires.

    • Dimensions: Approximately 14" (H) x 9" (W) x 6.5" (D)

    • Weight: Approximately 29–40 lbs (depending on the specific enclosure/series).

    Compliance & Certifications

    • Standards: UL Listed, CSA Certified, IEC Rated, and NOM (Mexico) compliant.

    • Application: HACR rated (Heating, Air Conditioning, and Refrigeration).
